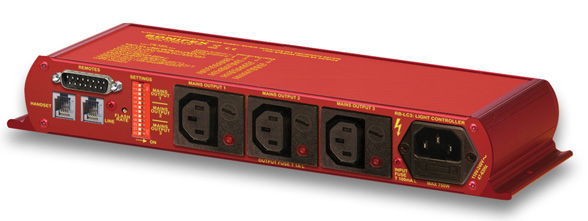

The RB-LC3 3 Way Light/Power Controller.
RB-LC3 3 Way Light/Power Controller
The RB-LC3 is a triple output switching unit for controlling external mains indicators, primarily studio status lights for broadcasting applications, such as On-Air, Mic-Live and Rehearsal/Live lights. Each output can be individually controlled by one of three remote inputs (pulled high, or low), by a telephony input (when ringing, or off-hook, or both), or a combination of two inputs (to control two outputs, e.g. for Rehearsal/Live situations). The type of control is set using the 12 way
DIP switch(4 switches for each output, allowing 16 different settings).
All connections are on the rear panel. >
The three IEC outputs are controlled by zero-cross point drivers. When
an output is activated,
the A.C. voltage level at
that output will be equal
to the mains input voltage
used to power the unit.
External control of the switched mains outputs is via the 15 way D-type
plug connector. The telephone Line input and Handset output are via two RJ11-4 type connectors. The telephone connections are wired pin to pin from Line to Handset except when the remote Ring Mute control input is asserted. In this case the ring signal to the Handset
is muted.
The status of the telephone line is continually monitored so that handset ringing and off-hook conditions can
be indicated.
A pre-set potentiometer on the rear panel controls the flash rate of the output when the appropriate mode is selected. Neon indicators on each power socket show the status of the mains output.

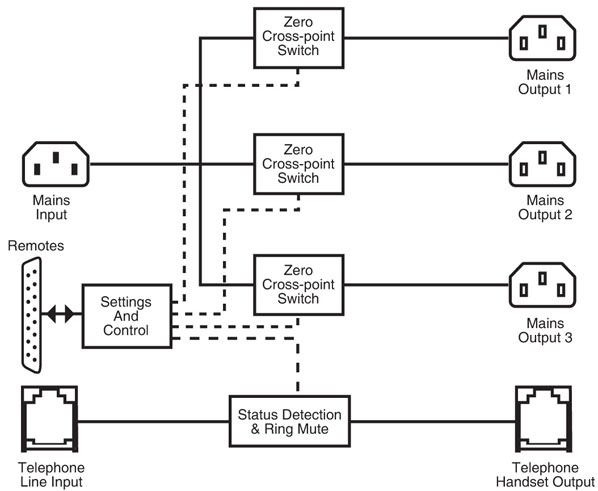

RB-LC3 Block Diagram.
Technical Specification For RB-LC3 |
|
Connections |
|
| Mains Input: | Non-filtered IEC, 110V-240V auto- adjusting, fused, 6W maximum |
| Mains Outputs: | 3 x Non-filtered IEC plugs, 1A fused |
| Fuse Rating (Mains Outputs): | 3 x Anti-surge fuse 1A 20 x 5mm |
| Telephone: | 2 x RJ11-4 sockets |
| Control Inputs & Outputs: | 15 way D-type plug Inputs: 0V- 5V DC Outputs: Open collector 20mA sink capability |
Equipment Type |
|
| RB-LC3: | 3 way light/power controller |
Physical Specification |
|
| Dimensions (Raw): | 28cm (W) x 10.8cm (D) x 4.2cm (H) (1U) 11” (W) x 4.3” (D) x 1.7” (H) (1U) |
| Dimensions (Boxed): | 36cm (W) x 20.5cm (D) x 6cm (H 14.2” (W) x 8” (D) x 2.4” (H) |
| Weight: | Nett: 1.00kg Gross: 1.45kg Nett: 2.2lbs Gross: 3.2lbs |
