Sonifex RB-LU4 Quad Stereo Balanced to Unbalanced Converter

Related Links: > Sonifex Online Store   > Brochure > Handbook

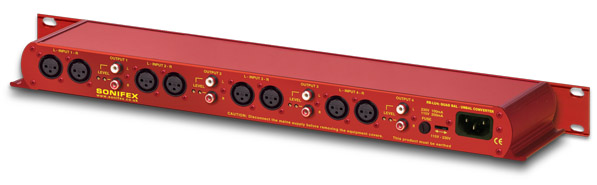

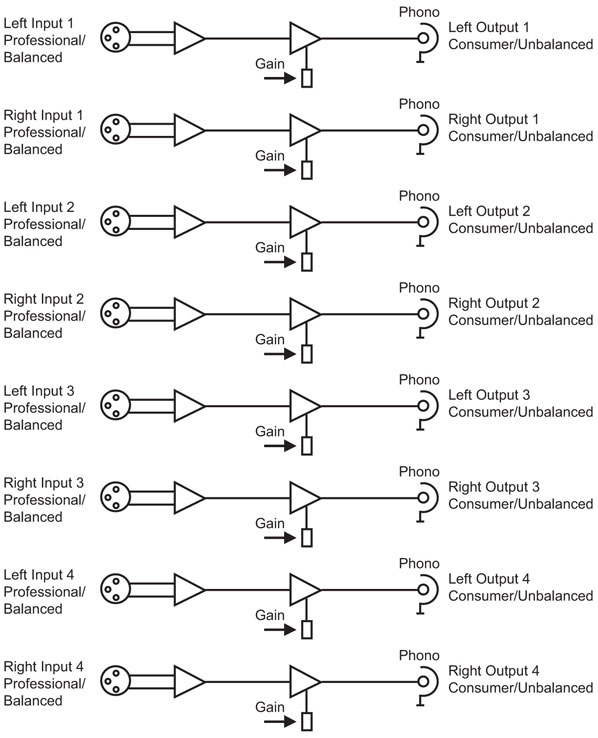

The RB-LU4 is a 1U rack-mount quad stereo unit for interfacing professional balanced line levels to domestic or semi-pro unbalanced equipment, e.g. for connecting a pro satellite receiver to a consumer hi-fi system. All connections are on the rear panel. The eight balanced XLR-3 inputs have an impedance of 20 kohms and are routed to eight unbalanced RCA outputs with an output impedance of <50 ohms. The output gain can be individually adjusted for left and right channels by using pre-set potentiometers accessible through the rear panel. A LED power indicator on the front panel displays the power supply connection.

Audio Specification
Maximum Input Level	+28dBu
Input Impedance (XLR)	20 kohms balanced bridging
Maximum Output Level	+22dBu
Output Impedance (RCA)	<50 ohms
Distortion	0.01% THD @ 1kHz, ref +8dBu output
Noise	-100dB, unity gain, ref +8dB output
Common Mode Rejection	>66dB typically
Frequency Response	20Hz to 20kHz ±0.1dB (600ohm load, ref 1kHz)
Gain Range	Unbalanced Output : -28dBu to +15dBu, ref -15dBu into balanced XLR input
Connections
Audio Inputs	8 x XLR 3 pin female (balanced)
Audio Outputs	8 x RCA phono (unbalanced)
Mains Input	Filtered IEC, 110V-120V, or 220-240V, fused, 6W max
Physical Specification
Weight	Nett: 1.3kg Gross: 1.9kg
Dimensions	Raw: 48cm (W) x 10.8cm (D) x 4.2cm (H) (1U) Boxed: 53cm (W) x 20.5cm (D) x 6cm (H)

Equipment Type
Code	Description	Plug
RB-LU4 UK	Quad Stereo Balanced to Unbalanced Converter, 230V (UK 3 pin to IEC)
RB-LU4 EU	Quad Stereo Balanced to Unbalanced Converter, 230V (European Schuko 2 pin to IEC)
RB-LU4 US	Quad Stereo Balanced to Unbalanced Converter, 115V (USA 3 pin to IEC)
RB-LU4 AU	Quad Stereo Balanced to Unbalanced Converter, 230V (Australasian 3 pin to IEC)

Accessories for this Product
Code	Description
RB-RK3	1U rear panel rackmount kit for large Redbox
RB-FR1	Front panel kit without rack mounting for large Redbox
