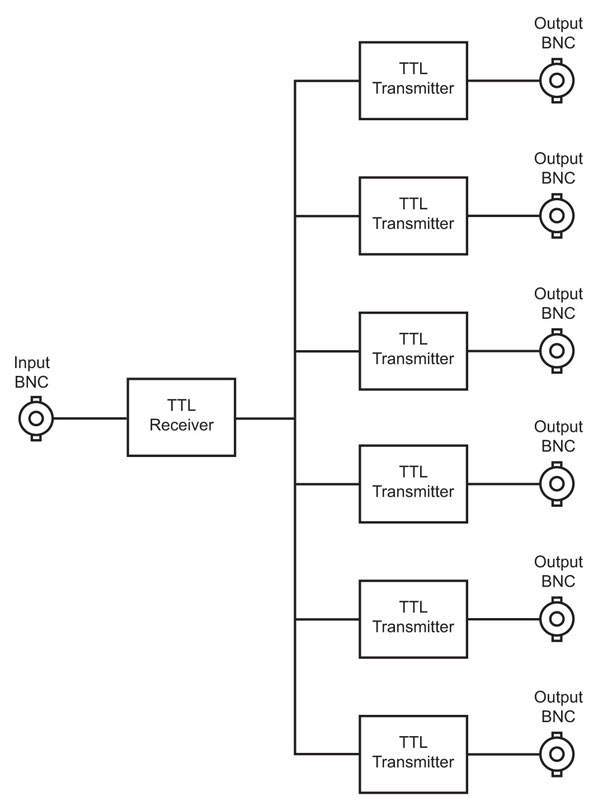

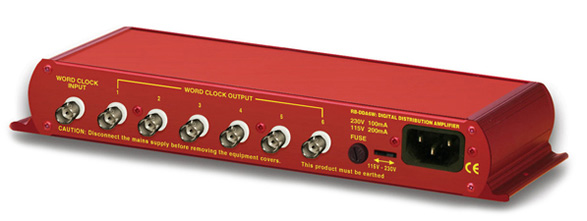

The RB-DDA6W Word Clock Distribution Amplifier distributes a wordclock BNC input signal to 6 word clock BNC outputs re-conditioned. It is used to distribute reference clocks for digital audio systems.
It has a single female BNC audio input which is distributed to 6 female BNC outputs.
The units primary application is to distribute a master TTL word clock source to multiple pieces of equipment that need to be synchronised from the master.
Audio Specification
Input Impedance
75 ohms
Output Impedance
<50 ohms
Connections
Input
1 x BNC female
Outputs
6 x BNC female
Mains input
Filtered IEC, switchable 110-120V, or 220-240V, fused, 6W max
Physical Specification
Weight
Nett: 0.9kg Gross: 1.35kg
Dimensions
Raw: 28cm (W) x 10.8cm (D) x 4.2cm (H) Boxed: 36cm (W) x 20.5cm (D) x 6cm (H)
Equipment Type
Code
Description
Plug
RB-DDA6W UK
6 Way Word Clock Distribution Amplifier, 230V (UK 3 pin to IEC)
RB-DDA6W EU
6 Way Word Clock Distribution Amplifier, 230V (European Schuko 2 pin to IEC)
RB-DDA6W US
6 Way Word Clock Distribution Amplifier, 115V (USA 3 pin to IEC)
RB-DDA6W AU
6 Way Word Clock Distribution Amplifier, 230V (Australasian 3 pin to IEC)
