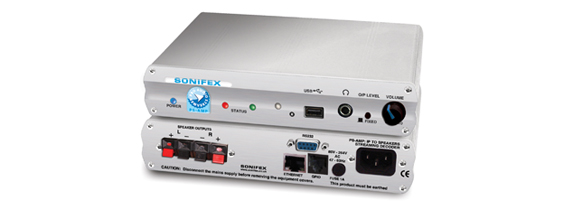

Iso View |
Rackmounted Iso View |
Front View |
Rear View |
PS-AMP IP to Speakers Streaming Decoder.
PS-AMP IP to Speakers Streaming Decoder
The PS-AMP is a freestanding unit which converts an IP audio stream directly to speaker outputs. It is also available in a 1U rack-mount as the PS-AMPS. The PS-AMP has the same feature-set as the PS-PLAY except that there are no individual audio outputs other than the speaker terminals. The PS-AMP uses an integrated 2 x 15W D-class amplifier to deliver audio directly to a pair of connected speakers.
For further information on features please refer to the PS-PLAY.
Technical Specification For PS-AMP |
|
| Analogue Outputs: | 2 x speaker connectors (2 each black and red terminals) 1 x ¼ inch (6.35mm) stereo jack headphone socket |
| Headphones Output: | Drives 150mW into 32Ω to 600Ω stereo headphones |
| Headphone Level Range: | -60dB – 18dB via front panel control knob or optional IR controller |
| USB Port: | 1 x USB A socket |
| GPOs (General Purpose Outputs): | 2 x switchable relay contacts (simultaneously switched) controlled from PS-SEND |
| Serial Port: | 1 x 9 way D-type socket, used to send control commands and update firmware |
| Ethernet Port: | 1 x RJ45 socket. Remote control commands can be sent via TCP or UDP as well as firmware updates. |
| IR Remote Receiver: | Remote commands can be sent using optional remote control via built in IR sensor |
| Speaker Power: | 15W per channel into 8ohm @ 10% THD+N |
| Mains Input: | Filtered IEC, 85 - 264VAC, 47 - 63 Hz, 60W max |
| Fuse Rating: | Anti-surge fuse 1A 20 x 5mm |
| Audio Codec Specifications Decoder G.711 (U Law/A Law 8kHz to 48kHz sampling rate) WAV (IMA ADPCM+ 16bit PCM uncompressed: 8kHz to 48kHz) MP3 Layer 1 (32, 44.1 and 48kHz, CBR +VBR +ABR) MP3 Layer 2 (16, 22.05 and 24kHz, CBR +VBR +ABR) AAC+ (HE-AAC v2 Level 3, incl.SBR and PS) Ogg Vorbis (floor 1) WMA 4.0/4.1/7/8/9 all profiles (5-384kbps) |
|
| Supported Network Transport Protocols RTP - UDP HTTP - TCP SIP Raw UDP Raw TCP SNMP - traps for remote management DHCP, BOOTP, IPZator or AUTOIP - Dynamic IP address resolution SonicIP IP Address readout |
|
Physical Specification |
|
Dimensions (Raw): |
22cm (W) x 13.7cm (D) x 4.3cm (H) 8.67” (W) x 5.39” (D) x 1.7” (H) |
Dimensions (Boxed): |
34cm (W) x 27cm (D) x 6cm (H) 13.4” (W) x 10.6” (D) x 2.4” (H) |
Weight: |
Nett: 0.84kg Gross: 1.64kg Nett: 1.85lbs Gross: 3.6lbs |
