OG-R2-10B, openGear single rear module using unbalanced BNC I/O.
OG-R2-10B, openGear single rear module using unbalanced BNC I/O

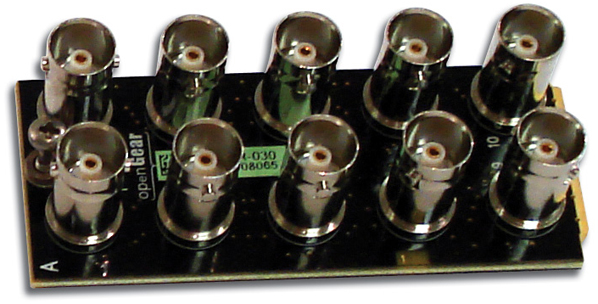

The OG-R2-10B has 10 BNC connectors and is used with the OG-DDA8U and OG-DDA8US digital distribution amplifiers.
 |
 |
| og-r2-10-rear-view | og-r2s-10-rear-view |
Technical Specification For OG-R2-10B |
|
Audio Specification |
|
| Input Impedance: | 75Ω ±5% unbalanced |
| Output Impedance: | 75Ω ±5% unbalanced |
| Signal Level: | Balanced min 0.5V ±20% peak to peak (OG-DDA8U) |
Equipment Type |
|
| OG-R2-10B: | openGear single rear module using unbalanced BNC I/O |
