Audio Interfaces - Redbox - Stereo To Mono Converters

Please Note: This Product has been discontinued



RB-SM1
RB-SM1 Iso
RB-SM1 Front
RB-SM1 Rear
Iso View
Front View
Rear View
High resolution image of iso view >>
High resolution image of front view >>
High resolution image of rear view >>


  RM-RK1 logo  RM-RK2 logo The RB-SM1 Single Stereo to Mono Converter.

RB-SM1 Single Stereo to Mono Converter

The RB-SM1 converts a stereo input to a fully buffered and balanced mono line output, e.g. to supply cue in broadcast environments or to feed a mono PA system.

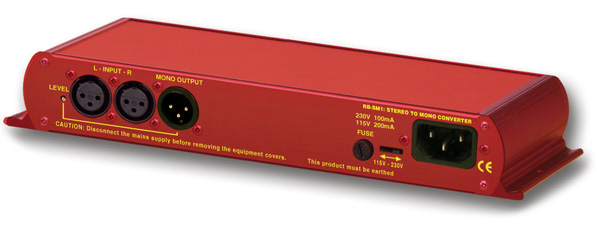

The connections, which are on the rear panel, are of an XLR-3 type. The input is electronically balanced with an impedance of 20kΩ bridging. This can be wired unbalanced to accept an output from domestic equipment.

The output is electronically balanced with an output impedance of <50Ω. The output can be wired unbalanced by grounding the non-phase signal, allowing you to feed both balanced and unbalanced equipment.

Output gain adjustment using a pre-set potentiometer for the converter allows a normalised mono output from domestic stereo equipment. This potentiometer is accessible through the rear panel.

RB-SM1 Diagram

RB-SM1 Block Diagram.

See larger image >

Technical Specification For RB-SM1

Audio Specification

Maximum Input Level: +28dBu
Maximum Output Level: +28dBu
Input Impedance: >20kΩ balanced bridging
Output Impedance: <50Ω balanced
Frequency Response: 20Hz to 20kHz ±0.1dB (600Ω load, ref 1kHz)
Gain Range: Adjust -8dB to +18dB gain, ref. 0dB input on L and R
Common Mode Rejection: >66dB typically
Distortion: 0.01% THD @ 1kHz, ref +8dBu output
Noise: -100dB, unity gain, ref +8dBu output


Connections

Inputs: 2 x XLR 3 pin female (Balanced, can be unbalanced)
Outputs: 1 x XLR 3 pin male (Balanced, can be unbalanced)
Mains Input: Filtered IEC, switchable 110-120V, or 220-240V, fused, 6W max
Fuse Rating: Anti-surge fuse 100mA 20 x 5mm (230VAC)
Anti-surge fuse 250mA 20 x 5mm (115VAC)


Equipment Type

RB-SM1: Single stereo to mono converter


Physical Specification

Dimensions (Raw): 28cm (W) x 10.8cm (D) x 4.2cm (H) (1U)
11” (W) x 4.3” (D) x 1.7” (H) (1U)
Dimensions (Boxed): 36cm (W) x 20.5cm (D) x 6cm (H)
14.2” (W) x 8” (D) x 2.4” (H)
Weight: Nett: 1.00kg Gross: 1.45kg
Nett: 2.2lbs   Gross: 3.2lbs
