RB-DDA6A
RB-DDA6A Iso
RB-DDA6A Front
RB-DDA6A Rear
Iso View
Front View

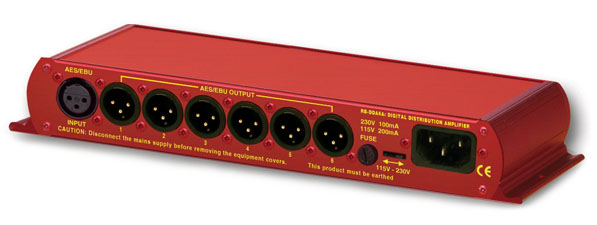

Rear View
High resolution image of iso view >>
High resolution image of front view >>
High resolution image of rear view >>


24 bit 96kHz logo   RM-RK1 logo  RM-RK2 logo The RB-DDA6A AES/EBU Digital Distribution Amplifier.

RB-DDA6A AES/EBU Digital Distribution Amplifier

The RB-DDA6A digital distribution amplifier is used for distributing digital audio data in AES/EBU format, repeating both the audio data and the status information of the input whilst re-normalising to standard digital audio levels.It has a single XLR-3 female AES/EBU audio input which is distributed to 6 XLR-3 male AES/EBU outputs.

Applications include distributing audio from a digital mixing desk to multiple digital recorders, or feeding multiple studios with an output from a DAT machine.

It can accept input sample rates in the range of 30kHz - 100kHz, and bit rates of 16, 20 and 24 bit. So, it can be used for standard CD signal distribution at 16 bit 44.1kHz, as well as for high quality 24 bit 96kHz recording.

RB-DDDA6A Diagram

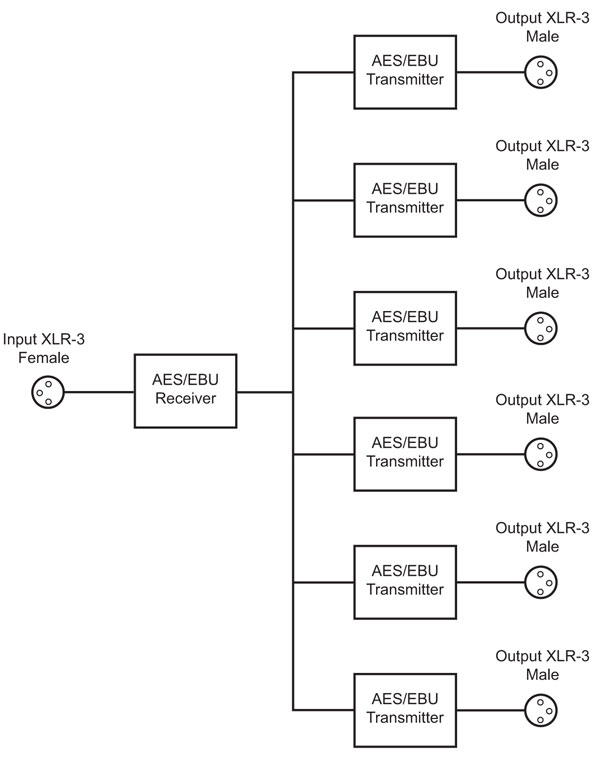

RB-DDA6A Block Diagram.

See larger image >

Technical Specification For RB-DDA6A

Audio Specification

Input impedance: 110Ω ±20% balanced
Output impedance: 110Ω ±20% balanced
Sample Freq Range: 30-100kHz (i.e. including 32kHz, 44.1kHz, 48kHz, 64kHz, 88.2kHz
& 96kHz)
Signal Level: 2V/7V peak to peak min/max


Connections

Inputs: 1 x AES/EBU XLR 3 pin female (Balanced)
Outputs: 6 x AES/EBU XLR 3 pin male (Balanced)
Mains Input: Filtered IEC, switchable 110-120V, or 220-240V, fused, 6W max
Fuse Rating: Anti-surge fuse 100mA 20 x 5mm (230VAC)
Anti-surge fuse 250mA 20 x 5mm (115VAC)


Equipment Type

RB-DDA6A: 6 way stereo AES/EBU digital distribution amplifier


Physical Specification

Dimensions (Raw): 28cm (W) x 10.8cm (D) x 4.2cm (H) (1U)
11” (W) x 4.3” (D) x 1.7” (H) (1U)
Dimensions (Boxed): 36cm (W) x 20.5cm (D) x 6cm (H)
14.2” (W) x 8” (D) x 2.4” (H)
Weight: Nett: 0.95kg Gross: 1.4kg
Nett: 2.1lbs  Gross: 3.2lbs
