AVN-M8R 8 Mic/Line Input Dante Interface, Dual PoE



AVN-DIO03
AVN-DIO03
AVN-DIO03
AVN-DIO03

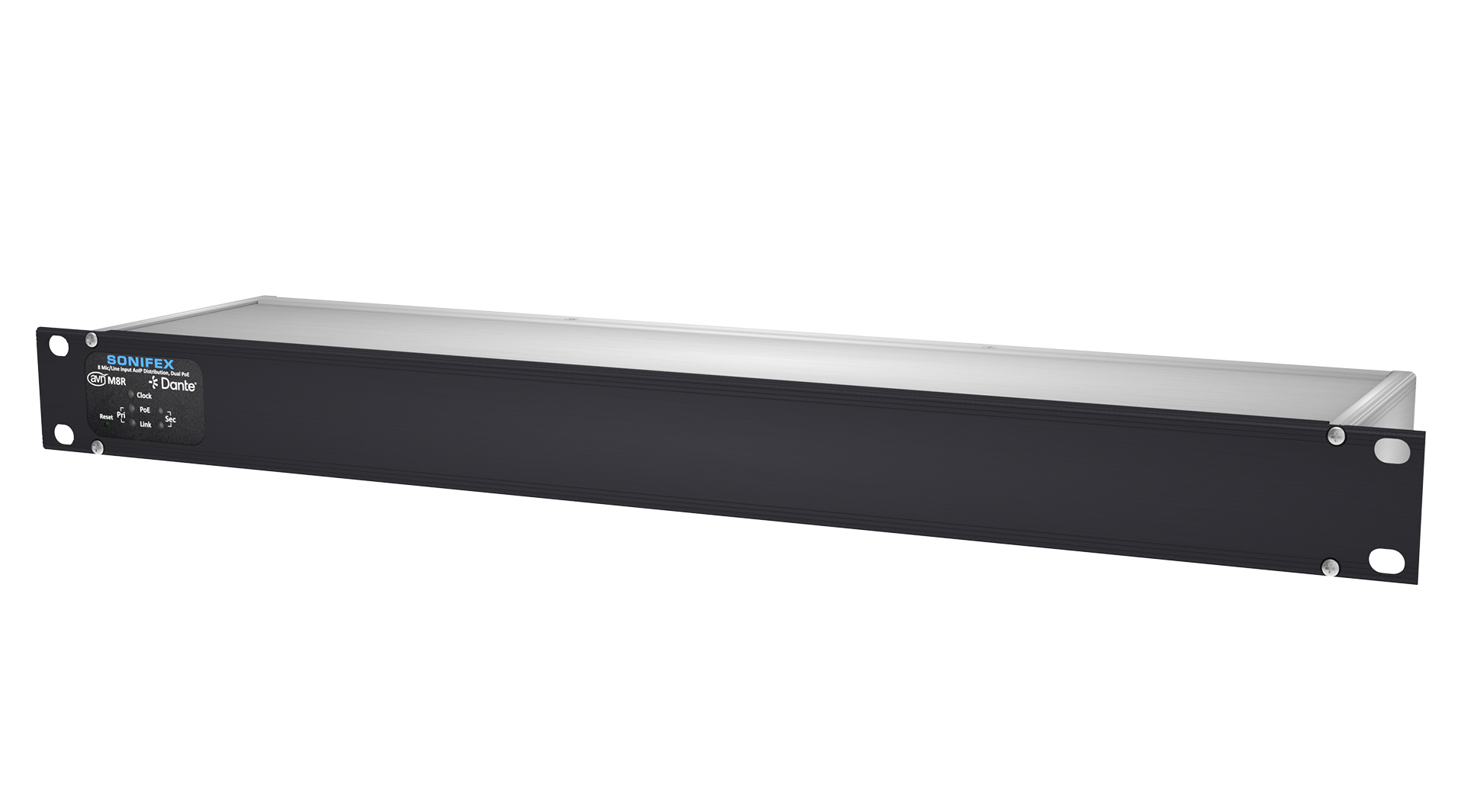

Iso View

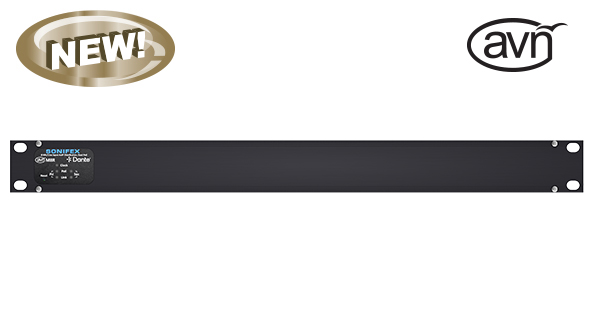

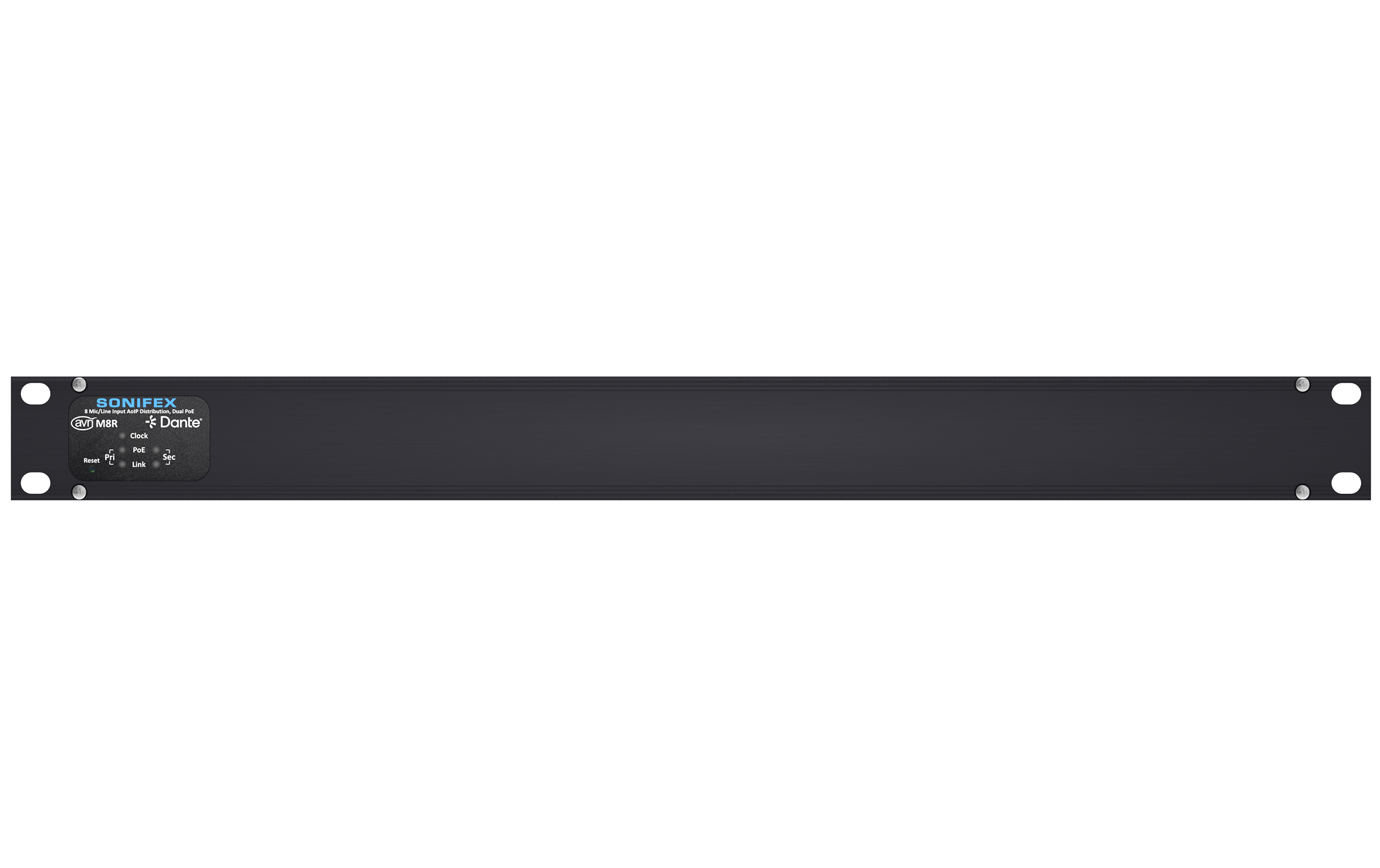

Front View

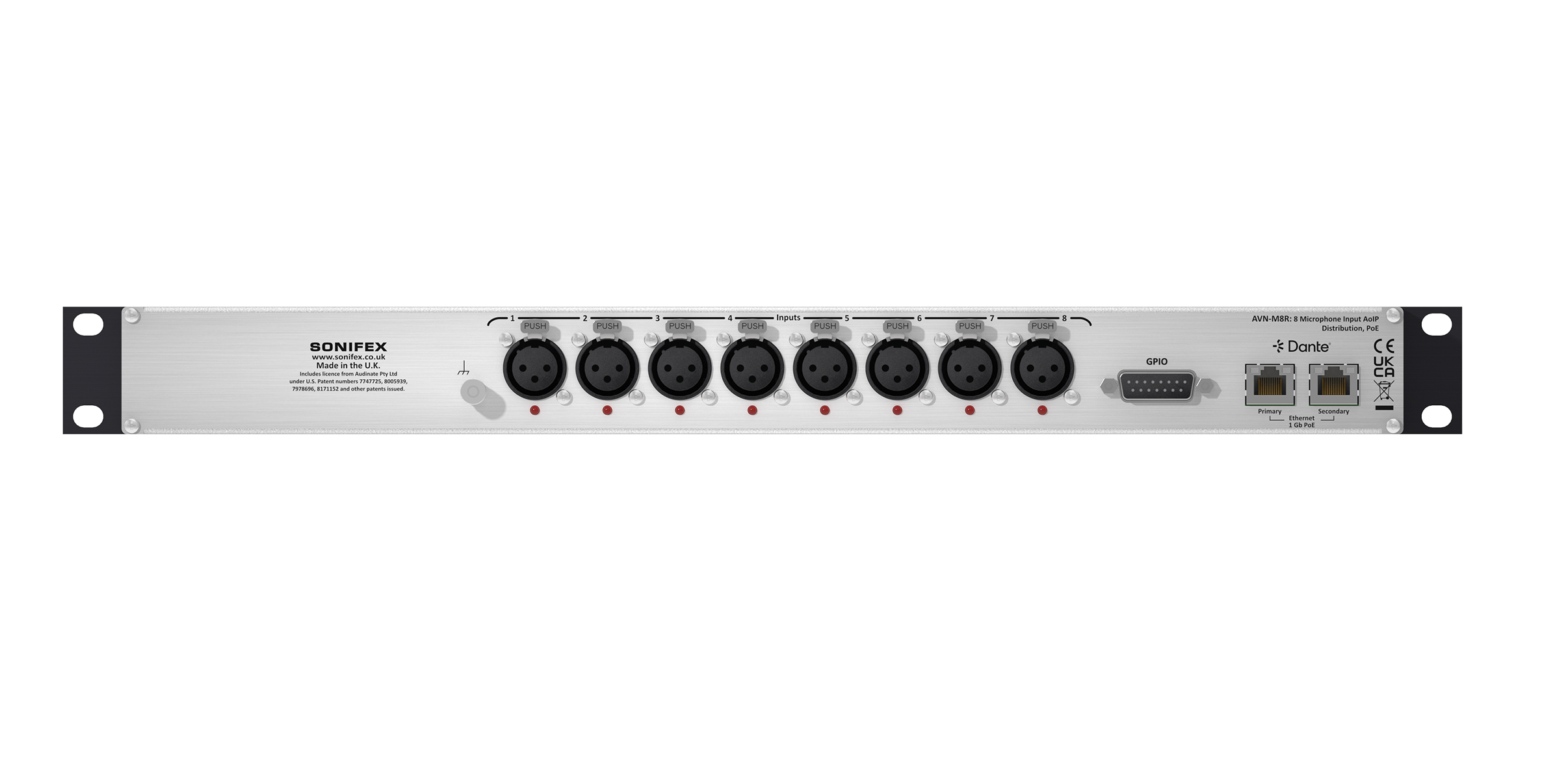

Rear View
High resolution image of iso view >>
High resolution image of front view >>
High resolution image of rear view >>

AVN-M8R 8 Mic/Line Input Dante Interface, Dual PoE

The AVN-M8R multi-channel Dante interface is a 19” 1U rack-mount unit which distributes 8 balanced Mic/Line inputs to 8 channels of Dante/AES67 on the AoIP network. Each Mic/Line input can be controlled remotely via a web server, with settings including, mic preamp gain and switchable phantom power.

A typical application might be to distribute up-to 8 separate balanced Mic and/or Line feeds onto an AoIP system and routed via Dante Controller to other nodes on the network.

The front panel includes clear LED indicators for power (PoE), network status and clock synchronisation, along with dedicated LEDs for secondary port link and PoE monitoring.

On the rear 8 XLR balanced Neutrik connectors provide the professional Mic/Line interface with phantom power indicators and the unit is powered via PoE for installation savings, reliability and efficiency. Primary and secondary 1Gb ports are offered as standard to provide full power and data redundancy, ensuring an uninterrupted reliable solution in critical environments.

The GPIO and VGPIO can be used to trigger events over the network between devices, such a microphone muting and other events.

Advanced Control & Remote Management

Fully compatible with the Dante AoIP standard, the AVN-M8R allows for flexible audio routing via Dante Controller. Additionally, Ember+ can be used as a control protocol for real-time status updates and remote control.

A built-in web server enables easy configuration of each input type on the AVN-M8R, these include:

Individual Mic-In settings include:

  • Phantom Power
  • Preamp Gain (16dB to 76dB) in 3db Increments

Individual Line-In settings include:

  • 5 Levels of Input Line-up (+15dBu to +24dBu = 0dBFS)

Individual Mic-In and Line-In Settings:

  • High Pass Filter
  • High Pass Corner Frequency
  • Signal Presence Threshold (dB)
  • Signal Presence Timeout

Global Settings

  • Status LED's Enable/Disable

High Resolution Image

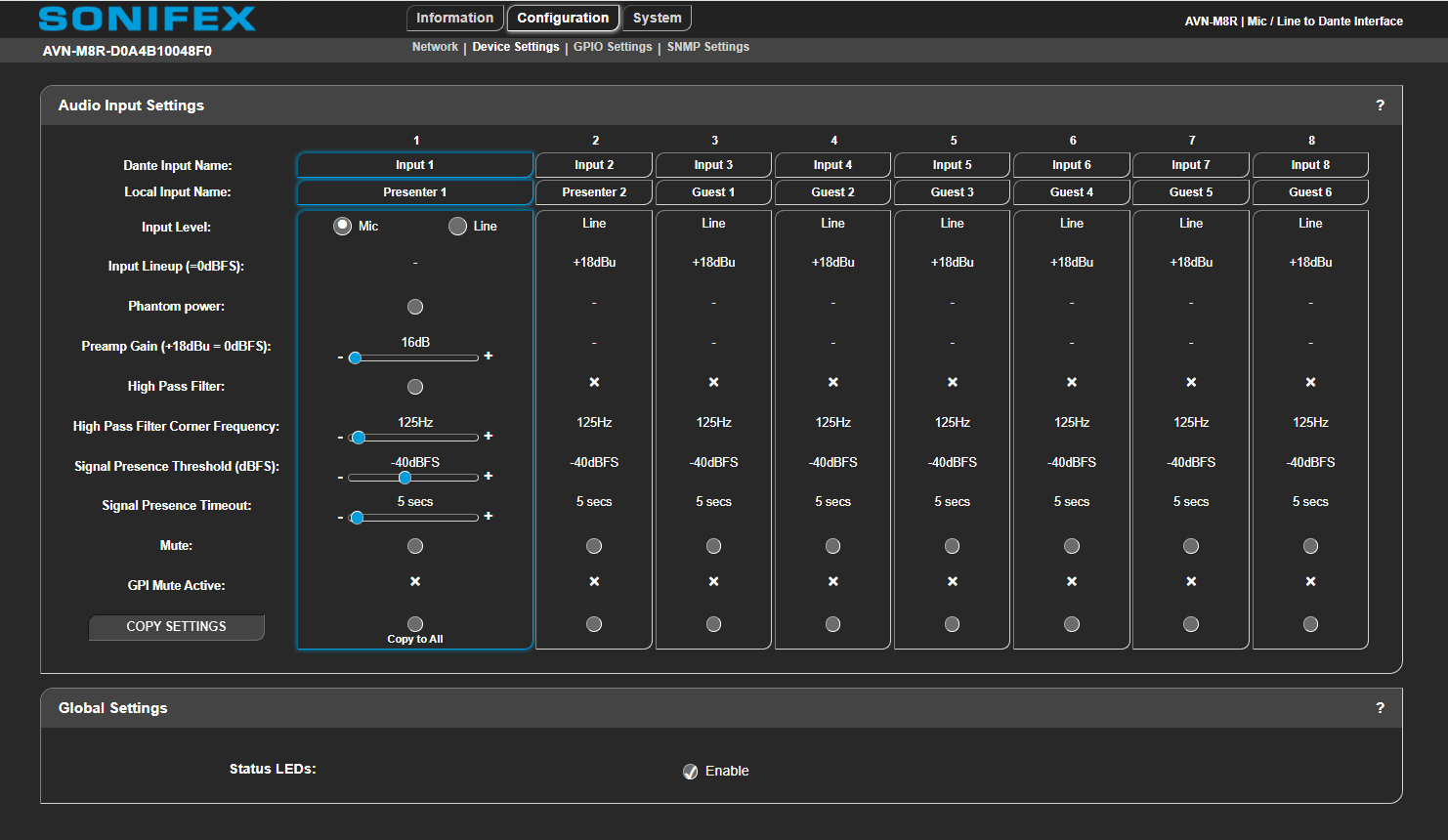

As shown above, the “Device Settings” page within the built-in web server, shows all 8 Mic/Line inputs as 8 channel strips, each displaying its associated Mic settings. Selecting a channel strip allows you to edit and configure its parameters.

A convenient “Copy Settings” function lets you duplicate settings across your choice of channels. For ease of use, each channel strip displays the hardware channel number, “Dante Input Name” and a user-defined “Local Input Name”.

High Resolution Image

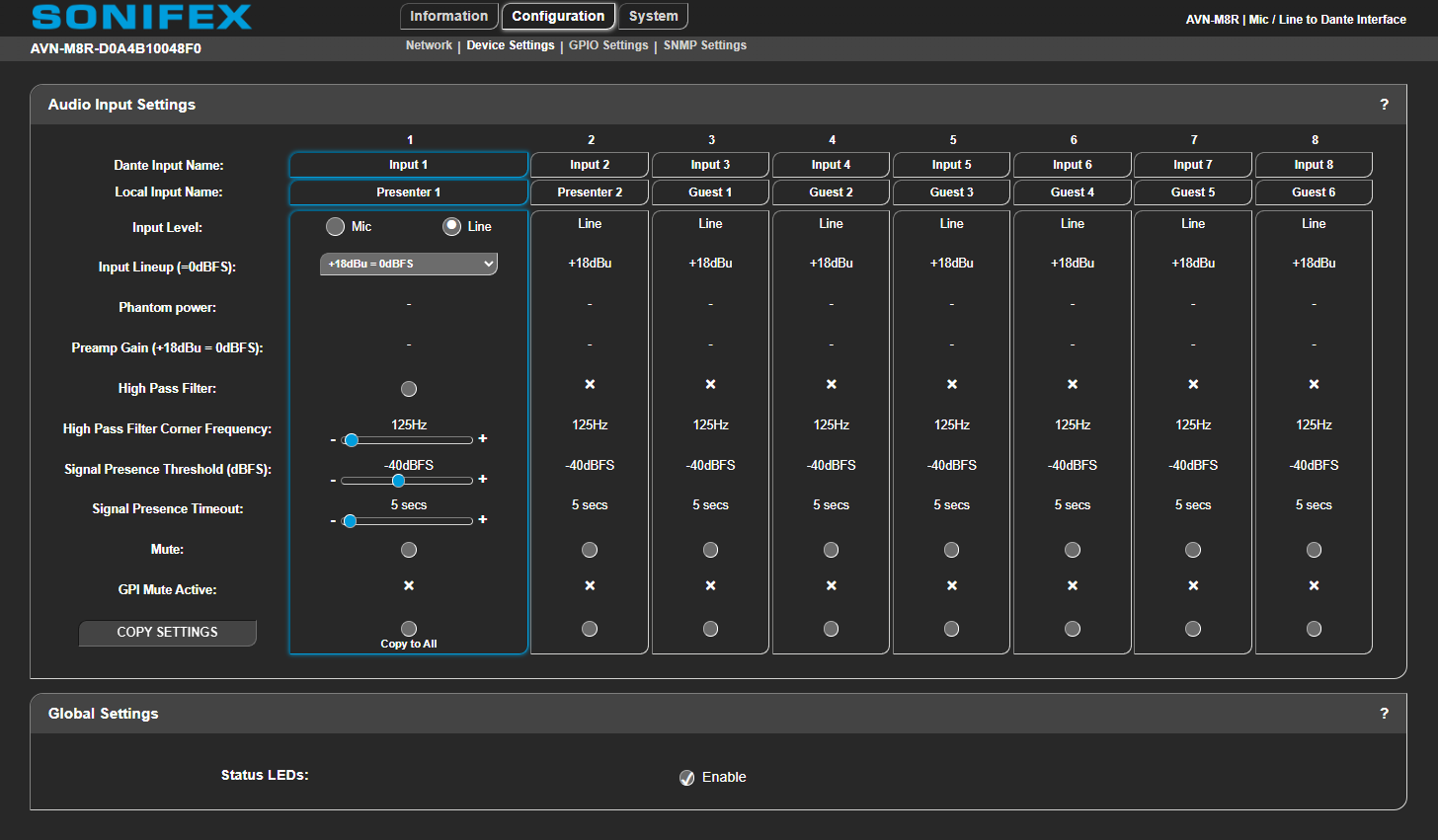

The 8 channel strip view above is displaying its associated Line settings, again allowing you to edit and configure its parameters. The copy function is also available ensuring speed and efficiency on set-up.

The unit supports AES67 operation and is Dante Domain Manager compliant offering a simple and intuitive user experience. With its robust feature set, flexible connectivity, and remote management capabilities, the AVN-M8R is the perfect solution for broadcasters, recording studios and live sound applications that require high-quality professional AoIP integration from their sources.

Rack-Mounted for Seamless Integration

The AVN-M8R is designed for professional installations, with a full-width aluminium 19” chassis and a compact 1U height. This standard rack-mount form factor ensures easy integration into racks rooms in any environment, providing a space-efficient solution without compromising on performance.

Accessories

  • AVN-AIORK - 1U Rear Rack Kit For AVN-AIO/M Range

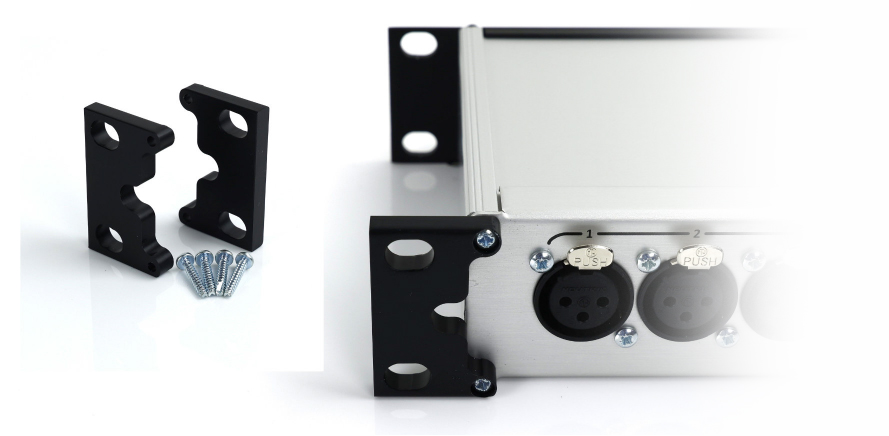

The AVN-AIORK is a 1U rear rack-mounting bracket designed for use with any product from the AVN-AIO/M range. It allows the unit to be mounted with its rear panel facing forward in a standard rack, providing convenient access to all rear connectivity. This alternative mounting solution is ideal for setups where frequent cable changes or monitoring connections are required.

Features

  • 8 x Mic/Line Inputs Using Neutrik Connectors.
  • Phantom Power with Indicators for Each Mic Input.
  • Remote Individual Input Control; such as, Mic Gain and Line-up Control Via the Web Server.
  • 2 x RJ45 Connector (1 Gb/s Ethernet Port) for Power and Network Redundancy.
  • PoE, Link and Clock LED Status Indicators.
  • Configuration Using Dante Controller & Dante Domain Manager Compliant.
  • AES67 Compatible.
  • Powered by PoE.
  • 1U 19" rack-mount form factor.
  • Aluminium Chassis

Technical Specification For AVN-M8R

Network and AoIP

AoIP Standard: Dante
Number of Channels: 8 transmit
Number of Streams: 8 transmit
Sample Rate: 44.1kHz, 48 kHz, 88.2kHz or 96kHz
Format: Linear PCM, 16, 24 or 32 bit
AES67 Support: Yes
Connectivity: 2 x RJ45
Speed: 1Gbps or 100Mbps
Network Modes: Switched or redundant
Dante Domain Manager Ready: Yes


Mic/Line Inputs

Input Impedance
(Mic Mode):
2.5kΩ electronically balanced
Input Impedance
(Line Mode):
>10kΩ electronically balanced
Preamp Gain
(Mic Mode):
User selectable 16dB to 76dB in 3dB steps (Ref. +18dBu = 0dBFS)
0dBFS Line-up
(Mic Mode):
-58dBu @ Max preamp gain, +2dBu @ Min preamp gain
0dBFS Line-up
(Line Mode):
User selectable +15dBu / +18dBu / +20dBu / +22dBu / +24dBu = 0dBFS
Frequency Response
(Mic Mode):
+0/-0.2dB 20Hz to 42kHz
Ref 40dB gain @ 1kHz
Frequency Response
(Line Mode):
+0/-0.2dB 20Hz to 42kHz
Ref 0dBu @ 1kHz
THD+N
(Mic Mode):
<-90dBFS, -52dBu, 20Hz – 20kHz, 40dB gain, 20kHz BW
THD+N
(Line Mode):
<-100dBFS, -6dBu, 20Hz – 20kHz, 20kHz BW (ref. +24dBu = 0dBFS)
Equivalent Input Noise
(Mic Mode):
<-143dBFS (-125dBu) Ref. 76dB preamp gain, Rs = 200Ω
Noise
(Line Mode):
<-100dBFS, 20kHz BW, Rs = 200Ω
C.M.R.R. >60dB @ 1kHz
Phantom Power
(Mic Mode):
+48V
High Pass Filter: 12dB/octave, user selectable frequency


Balanced Line Input XLR Pinout

Pin Function
1 Chassis Ground/Screen
2 input Phase/Positive
3 Input Non-Phase/Negative


PoE Power

Standard 802.3af
Class 0
PD Power Range 0.44 W to 12.94 W
Typical PSE Power Usage 10 W
Max PSE Power Usage 15.4 W


Equipment Type

AVN-M8R

AVN-M8R 8 Mic/Line Input Dante Interface, Dual PoE

Physical Specification

Dimensions (Unboxed): 48cm (W) x 11cm (D) x 4.3cm (H)(1U)
19” (W) x 4.3” (D) x 1.7” (H)
Dimensions (Boxed): 59.5cm (W) x 22.5cm (D) x 7cm (H)
23.4 ” (W) x 8.9” (D) x 1.7” (H)
Weight: Nett: 0.9kg Gross: 1.4kg
Nett: 1.9lbs Gross: 3.1lbs
