AVN-DIO08 Dante® AES3 Terminal Block Stereo Input & Output



AVN-DIO08
AVN-DIO08
AVN-DIO08
AVN-DIO08

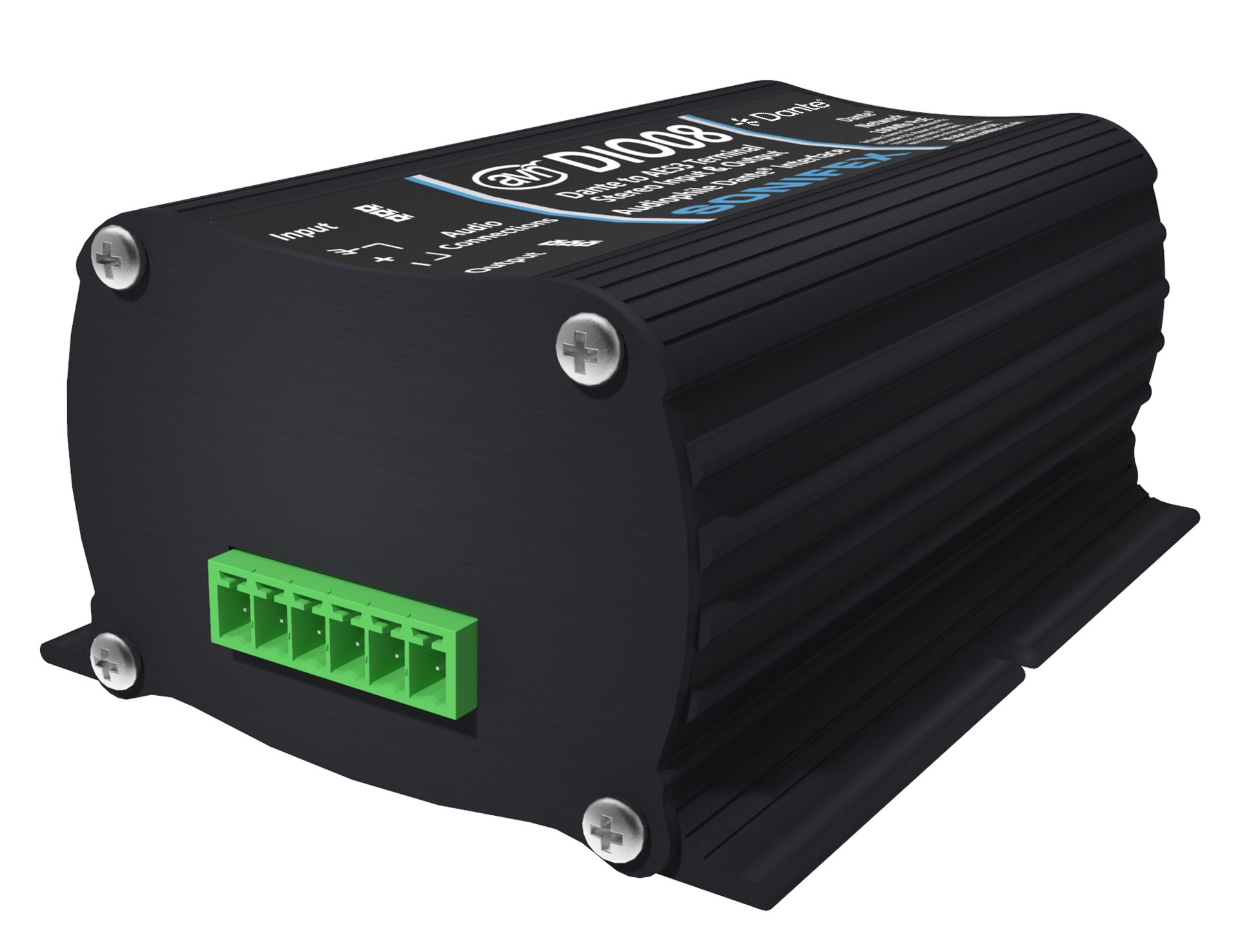

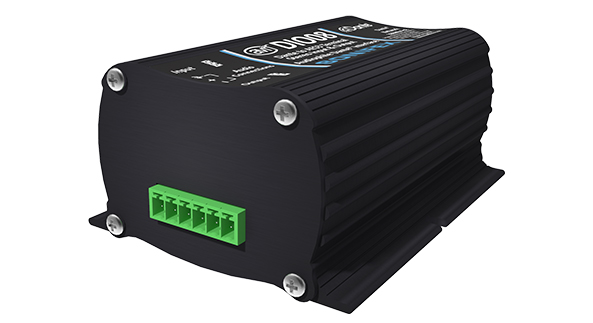

Iso View

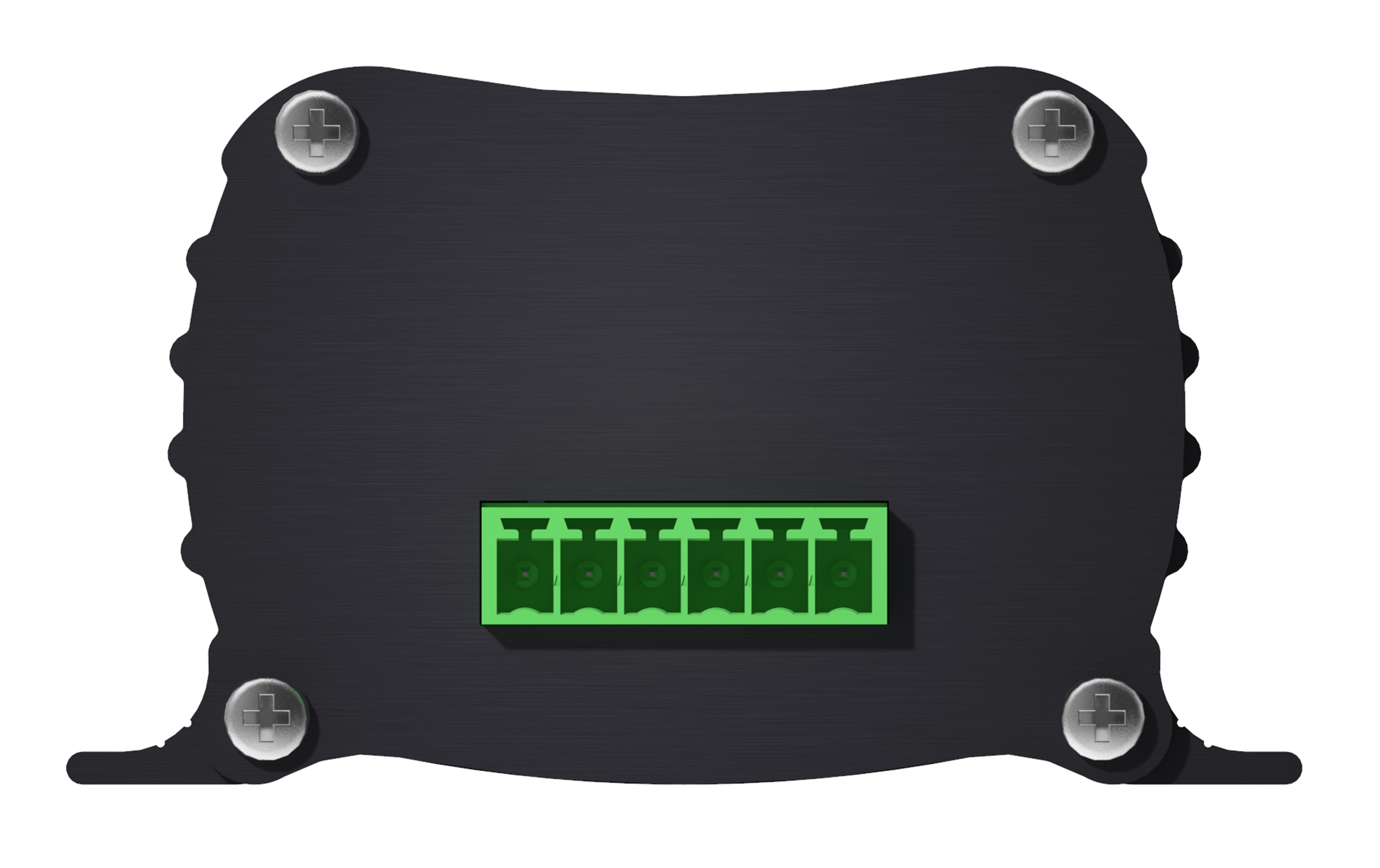

Front View

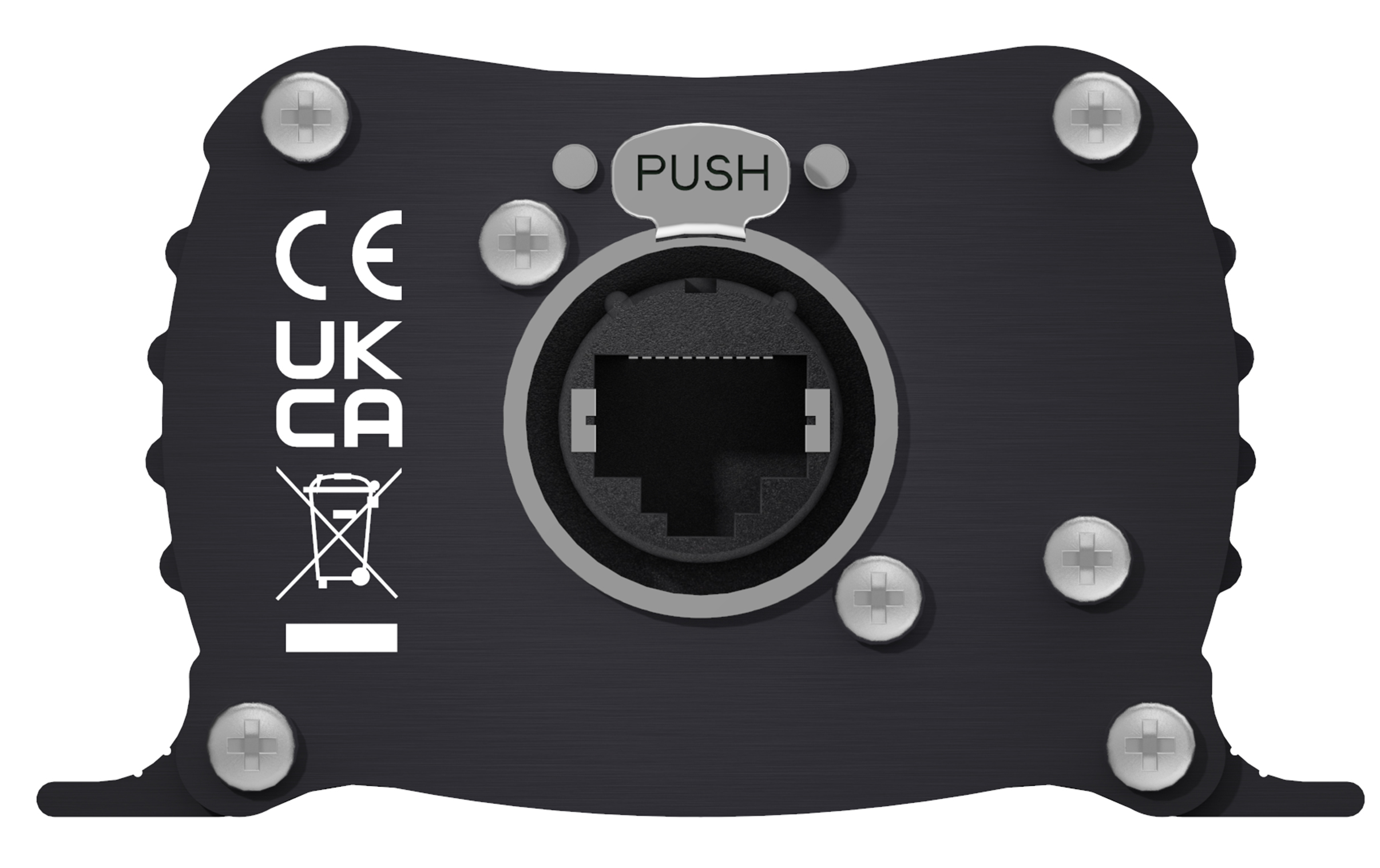

Rear View
High resolution image of iso view >>
High resolution image of front view >>
High resolution image of rear view >>

AVN-DIO08 Dante® AES3 Terminal Block Stereo Input & Output

The AVN-DIO08 is a Dante AES3 digital input and output audio convertor in the Sonifex DIO range of Dante input/output devices. It features stereo AES3 digital audio inputs and outputs on terminal block connectors, and one Neutrik EtherCon® connector for direct connection to a Dante AoIP network.

All Sonifex DIO interfaces provide a simple, convenient, and elegant plug and play method of connecting legacy analogue and digital audio equipment to the Dante AoIP audio network.

All DIO products use Dante Controller for configuration and are powered by PoE (Power over Ethernet). They use rugged aluminium boxes with side slots for screw-mounting and contain superior audio circuitry for optimal audio performance. All feature rugged Neutrik EtherCon® connectors and Neutrik lockable audio connectors for ultra-reliable connectivity.

  • 6 x terminal block connections (balanced stereo inputs and outputs).
  • Neutrik EtherCon® Ethernet connection.
  • Fully Dante compliant device.
  • AES67 compatible.
  • Dante Domain Manager compliant.
  • Ultra-high quality, wide dynamic range conversion.
  • Powered via PoE (Power over Ethernet).

Technical Specification For AVN-DIO08

AES3 Terminal Block Stereo Input & Output Pin-out

Pin Function Pin Function
1 Chassis Ground 4 Chassis Ground
2 Input Phase 5 Output Phase
3 Input Non Phase 6 Output Non Phase


AES3 Input – Terminal Block

Parameter Description
Input Impedance: 110Ω balanced
Input Format: AES3
Supported Sample Rates: 32kHz, 44.1kHz, 48kHz, 88.2kHz, 96kHz, 176.4kHz, 192kHz


AES3 Output - Terminal Block

Parameter Description
Output Impedance: 110Ω balanced
Output Format: AES3
Supported Sample Rates: 44.1kHz, 48kHz, 88.2kHz, 96kHz


Dante


Parameter Description
Sample Rates: 44.1kHz, 48kHz, 88.2kHz, 96kHz
Encoding: PCM 16, PCM 24, PCM 32


PoE Power

Standard 802.3af
Class 0
PD Power Range 0.44 W to 12.94 W
Typical PSE Power Usage 2 W
Max PSE Power Usage 15.4 W


Equipment Type

AVN-DIO08: Dante® AES3 Terminal Block Stereo Input & Output


Physical Specification


Dimensions (Raw): 10.6cm (W) x 7.3cm (D) x 4.3cm (H)
4.2” (W) x 2.9” (D) x 1.7” (H)
Dimensions (Boxed): 17.4cm (W) x 9.5cm (D) x 5.6cm (H)
6.9” (W) x 3.7” (D) x 2.2” (H)
Weight: Nett: 0.2kg Gross: 0.3kg
Nett: 0.44lbs Gross: 0.66lbs
