AVN-DIO04 Dante® Analogue Phono Stereo Input & Output



AVN-DIO04
AVN-DIO04
AVN-DIO04
AVN-DIO04

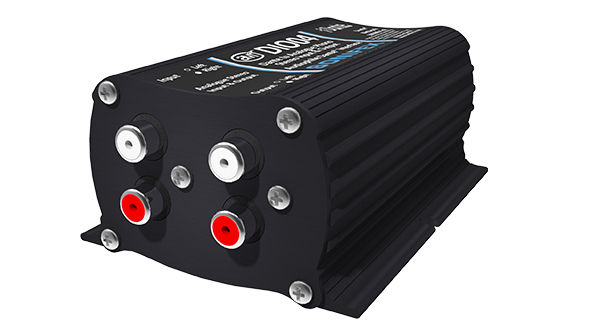

Iso View
Front View
Rear View
High resolution image of iso view >>
High resolution image of front view >>
High resolution image of rear view >>

AVN-DIO04 Dante® Analogue Phono Stereo Input & Output

The AVN-DIO04 is a Dante analogue phono stereo input & output convertor in the Sonifex DIO range of Dante input/output devices. It features stereo analogue input and output phono connections and one Neutrik EtherCon® connector for direct connection to a Dante AoIP network.

Note: Depending on the nature of your PoE supply, it may be necessary to earth the unit using the rear panel earth tag to maximise audio performance.

All Sonifex DIO interfaces provide a simple, convenient, and elegant plug and play method of connecting legacy analogue and digital audio equipment to the Dante AoIP audio network.

The A/D and D/A circuitry offers 114dB(*) of dynamic range - ten times better than similar competing products. All DIO products use Dante Controller for configuration and are powered by PoE (Power over Ethernet). They use rugged aluminium boxes with side slots for screw-mounting and contain superior audio circuitry for optimal audio performance. All feature rugged Neutrik EtherCon® connectors and Neutrik lockable audio connectors for ultra-reliable connectivity.

* Note: Because the inputs & outputs of this device are unbalanced, performance is 6dB lower than for balanced AVN-DIO products.

  • 2 x analogue phono-type inputs.
  • 2 x analogue phono-type outputs.
  • Neutrik EtherCon® Ethernet connection.
  • Fully Dante compliant device.
  • AES67 compatible.
  • Dante Domain Manager compliant.
  • Ultra-high quality, wide dynamic range D/A and A/D conversion.
  • Powered via PoE (Power over Ethernet).

Technical Specification For AVN-DIO04

Analogue Phono Input & Output Pin-out

Pin Function
Inner: Signal (White - Left, Red - Right)
Outer: Chassis Ground



Line Input - RCA Phono


Parameter Description
Input Impedance: >5kΩ unbalanced
0dBFS Line-Up: +12dBu
Frequency Response: 20Hz to 20kHz, +0/-0.5dB (ref 1kHz)
THD+N: <-114dBFS, -18dBu, 20Hz to 20kHz, 20kHz BW
Dynamic Range: >114dB A-weighted, 20kHz BW, Rs=200Ω
Crosstalk: <-100dB


Line Output - RCA Phono


Parameter Description
Output Impedance: <200Ω balanced
0dBFS Line-Up: +12dBu
Frequency Response: 20Hz to 20kHz, +0/-0.5dB (ref 1kHz)
THD+N: <-114dBu, -30dBFS, 20Hz to 20kHz, 20kHz BW
Dynamic Range: >114dB A-weighted, 20kHz BW
Crosstalk: <-100dB


Dante


Parameter Description
Sample Rates: 44.1kHz, 48kHz, 88.2kHz, 96kHz
Encoding: PCM 16, PCM 24, PCM 32


PoE Power

Standard 802.3af
Class 0
PD Power Range 0.44 W to 12.94 W
Typical PSE Power Usage 5 W
Max PSE Power Usage 15.4 W


Equipment Type


AVN-DIO04: Dante® Analogue Phono Stereo Input & Output


Physical Specification


Dimensions (Raw): 11.1cm (W) x 7.3cm (D) x 4.3cm (H)
4.4” (W) x 2.9” (D) x 1.7” (H
Dimensions (Boxed): 17.4cm (W) x 9.5cm (D) x 5.6cm (H)
6.9” (W) x 3.7” (D) x 2.2” (H)
Weight: Nett: 0.2kg Gross: 0.3kg
Nett: 0.44lbs Gross: 0.66lbs
