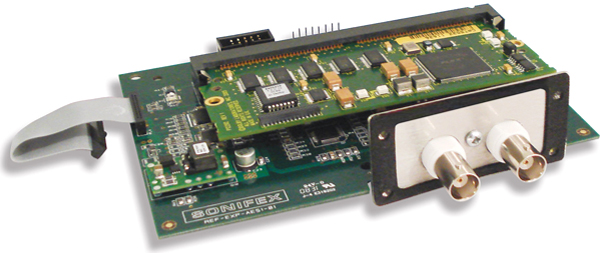

RM-E1B Reference Monitor Dolby E Decoder BNC Expansion Card
The expansion boards for the Reference Monitor RM-4C8 allow the monitoring of a digital audio stream containing either Linear PCM or Dolby* encoded audio. The RM-E1B has 2 x BNC connectors for S/PDIF level inputs.
Dolby data is decoded and passed to the Reference Monitor as either a stereo down mix or the full complement of individual channels. If the signal is standard Linear PCM, then this audio data is simply passed straight through. The input is re-transmitted with minimal delay, to allow connection to other equipment.
RM-E1B Diagram
Technical Specification For RM-E1B |
|
Inputs |
|
| AES/EBU Input/Output | 75Ω transformer coupled unbalanced I/O |
| Sample Rates: | 32 - 48 kHz |
| Audio Formats: | Linear PCM Dolby E (16, 20 and 24 bit) Dolby Digital (16 and 32 bit) |
Connectors |
|
| AES/EBU Input: AES/EBU Output: |
1 x BNC 1 x BNC |
