Net-Log Audio Logging Machines - Hardware
Net-Log-UPS01.

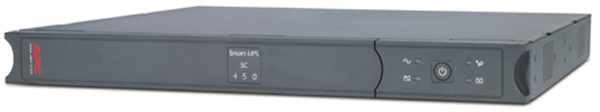

Net-Log-UPS01 (1U rack-mount UPS for use with Net-Log)
APC Smart-UPS SC, 280 Watts / 450 VA,Input 230V / Output 230V, Interface Port DB-9 RS-232, Rack Height 1 U.
Includes: CD with software, Rack Mounting brackets, Smart UPS signalling RS-232 cable, User Manual.
Technical Specification For Net-Log-UPS01 |
|
Output |
|
| Output Power Capacity: |
280 Watts/450 VA |
| Max Configurable Power: | 280 Watts/450 VA |
| Nominal Output Voltage: | 230V |
| Output Voltage Distortion: | Less than 5% at full load |
| Output Frequency (sync to mains): | 47-53Hz for 50 Hz nominal, 57-63Hz nominal |
| Crest Factor: | Up to 5 : 1 |
| Waveform Type: | Stepped approximation to a sinewave |
| Output Connections: | (4) IEC 320 C13 (2) IEC Jumpers |
Input |
|
| Nominal Input Voltage: | 230V |
| Input Frequency: | 50/60Hz +/-3Hz (auto sensing) |
| Input Connections: | IEC-320 C14 |
| Input voltage range for main operations: | 160-286V |
| Input voltage adjustable range for mains operation: | 151-302V |
Batteries & Runtime |
|
| Battery Type: | Maintenance-free sealed Lead-Acid battery with suspended electrolyte: leakproof |
| Typical recharge time: | 5 hours |
| Replacement Battery: | RBC18 |
| RBC™ Quantity | 1 |
| Typical Backup Time at half load | 19.4 minutes (140 Watts) |
| Typical Backup Time at full load | 5.9 minutes (280 Watts) |
| Runtime Chart | Smart-UPS SC |
Dimensions & Weight |
|
| Maximum height: | 44.00mm |
| Maximum width: | 432.00mm |
| Maximum depth: | 383.00mm |
| Rack height: | 1U |
| Net weight: | 10.18KG |
| Shipping weight: | 11.73KG |
| Shipping height: | 164.00mm |
| Shipping width: | 476.00mm |
| Shipping depth: | 589.00mm |
| Colour | Grey |
