Talkback Control Unit
CM-TB8G Talkback Control Unit, CM-TB8 with CM-TBG Dual GSM Interface
The CM-TB8G is the CM-TB8, 8 Channel Talkback Control Unit, with the CM-TBG add-in card fitted.

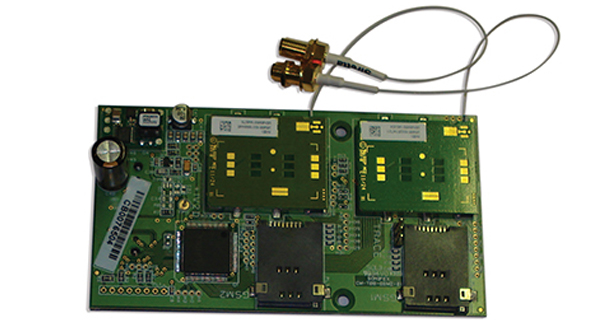

The CM-TBG is a dual GSM telephone expansion card. It extends the talkback capability of the CM-TB8 by allowing mobile telephone calls to be made and received via two independent quad band mobile telephone modules.
The GSM modules are configured via the CM-TB8 embedded web server. This provides access to features including network selection, telephone number storage and phone logs. Each module has its own internal SIM card slot and separate antenna connection which is mounted on the rear panel of the CM-TB8.
Telephone calls are made and received using the embedded web server or directly using the channel controls. The CM-TB8 can store 8 telephone numbers and each channel can speed dial the required number.
IFB modes are fully supported on the telephone channels allowing selected input signals to be routed to a connected telephone call.
Technical Specification For CM-TBG
|Module Type:||Quad-Band EGSM 850 / 900 / 1800 /1900MHz|
|Output Power:||Class 4 (2W) @ 850 / 900MHz
Class 1 (1W) @ 1800 / 1900MHz
|Sensitivity:||-107 dBm (typ.) @ 850 / 900MHz
-106 dBm (typ.) @ 1800 / 1900MHz
|Approvals:||Fully type approved conforming to R&TTE CE, GCF, FCC, PTCRB, IC, Anatel|
|Connections:||2 x SMA Socket – antenna|
|CM-TBG:||Add-in card for CM-TB8 with 2 x GSM line.|
|CM-TB8G :||CM-TB8 including CM-TBG.|
|Dimensions (Raw):||15cm (W) x 10cm (D) x 3cm (H)
5.9” (W) x 3.9” (D) x 1.2” (H)
|Dimensions (Boxed):||23cm (W) x 13cm (D) x 8cm (H)
9.1 ” (W) x 5.1” (D) x 3.1” (H)
|Weight:||Nett: 0.2kg Gross: 0.3kg
Nett: 0.4lbs Gross: 0.7lbs
